Deletion at a Specific Position in a Doubly Linked List: A Detailed Exploration

By

Doubly Linked Lists are a fundamental data structure in computer science, widely used for their flexibility in dynamic memory management and bidirectional traversal capabilities. In this post, we will delve deep into the mechanics of deleting a node from a doubly linked list at a specific position. We will also examine the necessary operations, analyze the code implementation, and explore the benefits and intricacies of this process. By the end of this post, you will have a thorough understanding of how this works, including its time complexity and auxiliary space requirements.

Understanding a Doubly Linked List

A Doubly Linked List (DLL) is a type of linked list where each node contains three parts:

  • Data: The value or information stored in the node.
  • Pointer to the Previous Node (prev): A reference to the preceding node in the list.
  • Pointer to the Next Node (next): A reference to the succeeding node in the list.

The ability to traverse both forward and backward makes DLLs highly versatile in applications like browser history, undo functionality in text editors, and cache implementations. However, this bidirectional nature also introduces additional complexity during node deletion, as we must update two pointers instead of one.

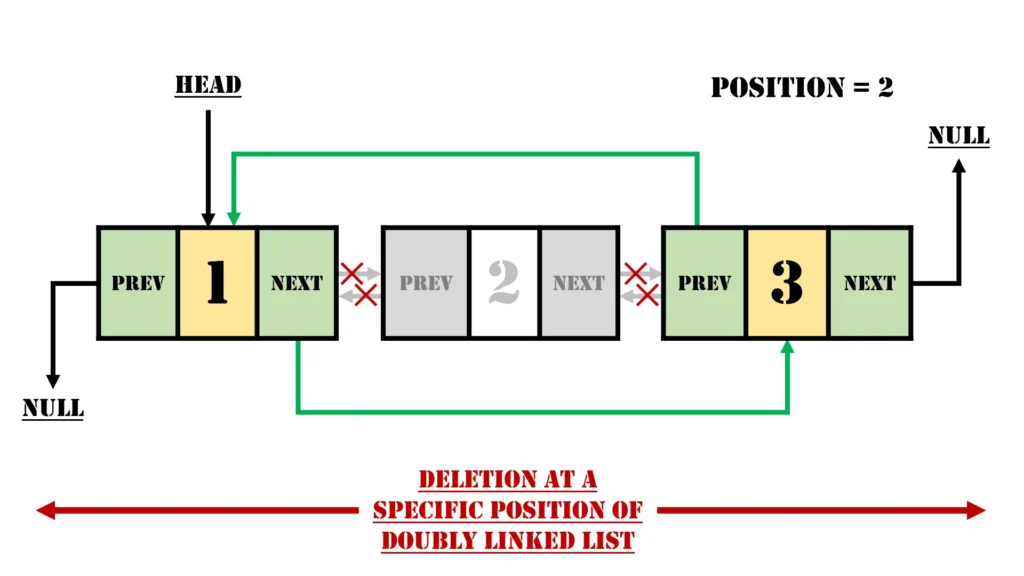

Deletion at a Specific Position in a Doubly Linked List
Deletion at a Specific Position in a Doubly Linked List

Steps for Deleting a Node at a Specific Position

Deleting a node at a specific position involves the following steps:

1. Locate the Node

The process begins by traversing the linked list to find the node at the desired position (curr). This is achieved by starting from the head of the list and moving sequentially through the nodes using the next pointer until the target position is reached.

2. Validate the Position

Before proceeding, it’s essential to ensure the position is within the valid range. If the list is empty or the position exceeds the number of nodes in the list, the operation terminates without making any changes.

3. Adjust Pointers

Once the node is located, the pointers of its adjacent nodes need to be updated:

  • If the node to be deleted is not the head, its previous node’s next pointer (curr->prev->next) is updated to bypass the current node and point directly to its successor (curr->next).
  • If the node to be deleted is not the tail, its next node’s prev pointer (curr->next->prev) is updated to point to its predecessor (curr->prev).

4. Update the Head

If the node to be deleted happens to be the head node, the head pointer of the list is updated to the next node (curr->next).

5. Deallocate Memory

Finally, the memory occupied by the node is freed using the free() function, ensuring no memory leaks occur.

Code Implementation in C Programming Language

Below is the C implementation of the above steps, along with additional functions for creating and printing a doubly linked list:

#include <stdio.h>
#include <stdlib.h>

struct Node {
    int data;
    struct Node* prev;
    struct Node* next;
};

// Function to delete a node at a specific position in the doubly linked list
struct Node* delPos(struct Node* head, int pos) {
    // If the list is empty
    if (head == NULL) {
        return head;
    }

    struct Node* curr = head;

    // Traverse to the node at the given position
    for (int i = 1; curr != NULL && i < pos; ++i) {
        curr = curr->next;
    }

    // If the position is out of range
    if (curr == NULL) {
        return head;
    }

    // Update the previous node's next pointer
    if (curr->prev != NULL) {
        curr->prev->next = curr->next;
    }

    // Update the next node's prev pointer
    if (curr->next != NULL) {
        curr->next->prev = curr->prev;
    }

    // If the node to be deleted is the head node
    if (head == curr) {
        head = curr->next;
    }

    // Deallocate memory for the deleted node
    free(curr);
    return head;
}

// Function to print the list
void printList(struct Node* head) {
    struct Node* curr = head;
    while (curr != NULL) {
        printf("%d ", curr->data);
        curr = curr->next;
    }
    printf("\n");
}

// Function to create a new node
struct Node* createNode(int data) {
    struct Node* newNode = (struct Node*)malloc(sizeof(struct Node));
    newNode->data = data;
    newNode->prev = NULL;
    newNode->next = NULL;
    return newNode;
}

int main() {
    // Create a hardcoded doubly linked list: 1 <-> 2 <-> 3
    struct Node* head = createNode(1);
    head->next = createNode(2);
    head->next->prev = head;
    head->next->next = createNode(3);
    head->next->next->prev = head->next;

    // Delete the node at position 2
    head = delPos(head, 2);

    // Print the updated list
    printList(head);

    return 0;
}

Output

For the given code, the output of the deletion operation is:

Original Linked List: 1 2 3
Deleting Node with data 2 at position 2: 1 3

Detailed Explanation of Code

  • Node Structure: The struct Node represents a single node in the doubly linked list. It includes:
    • data: Stores the value.
    • prev: Points to the previous node.
    • next: Points to the next node.
  • Deletion Function:
    • The delPos function accepts two arguments:
      • head: The pointer to the first node of the list.
      • pos: The position of the node to be deleted.
    • It ensures the position is valid before modifying the list structure.
  • Pointer Updates:
    • If the node to be deleted is not the head, the prev->next pointer is adjusted.
    • Similarly, if it’s not the tail, the next->prev pointer is updated.
    • Special handling is provided for the head node.
  • Node Creation: The createNode function dynamically allocates memory for a new node and initializes it.
  • Print Function: The printList function traverses the list from the head and prints the data of each node.

Code Implementation In Multiple Programming Languages

Here is the code written in C, C++, C#, Java, JavaScript, and Python, along with a detailed step-by-step explanation for each language.

Deletion at a Specific Position in a Doubly Linked List
Deletion at a Specific Position in a Doubly Linked List

C Program Implementation

#include <stdio.h>
#include <stdlib.h>

struct Node {
    int data;
    struct Node* prev;
    struct Node* next;
};

// Function to delete a node at a specific position in the doubly linked list
struct Node* delPos(struct Node* head, int pos) {
    if (head == NULL) {  // If the list is empty
        return head;
    }

    struct Node* curr = head;

    for (int i = 1; curr != NULL && i < pos; ++i) {  // Traverse to the node at the given position
        curr = curr->next;
    }

    if (curr == NULL) {  // If the position is out of range
        return head;
    }

    if (curr->prev != NULL) {  // Update the previous node's next pointer
        curr->prev->next = curr->next;
    }

    if (curr->next != NULL) {  // Update the next node's prev pointer
        curr->next->prev = curr->prev;
    }

    if (head == curr) {  // If the node to be deleted is the head node
        head = curr->next;
    }

    free(curr);  // Deallocate memory
    return head;
}

void printList(struct Node* head) {
    struct Node* curr = head;
    while (curr != NULL) {
        printf("%d ", curr->data);
        curr = curr->next;
    }
    printf("\n");
}

struct Node* createNode(int data) {
    struct Node* newNode = (struct Node*)malloc(sizeof(struct Node));
    newNode->data = data;
    newNode->prev = NULL;
    newNode->next = NULL;
    return newNode;
}

int main() {
    struct Node* head = createNode(1);  // Create a hardcoded doubly linked list: 1 <-> 2 <-> 3
    head->next = createNode(2);
    head->next->prev = head;
    head->next->next = createNode(3);
    head->next->next->prev = head->next;

    head = delPos(head, 2);  // Delete the node at position 2

    printList(head);  // Print the updated list

    return 0;
}

C++ Implementation

#include <iostream>
using namespace std;

struct Node {
    int data;
    Node* prev;
    Node* next;

    Node(int data) : data(data), prev(nullptr), next(nullptr) {}  // Constructor
};

Node* delPos(Node* head, int pos) {
    if (head == nullptr) return head;  // If the list is empty

    Node* curr = head;

    for (int i = 1; curr != nullptr && i < pos; ++i) {  // Traverse to the node at the given position
        curr = curr->next;
    }

    if (curr == nullptr) return head;  // If the position is out of range

    if (curr->prev != nullptr) {  // Update the previous node's next pointer
        curr->prev->next = curr->next;
    }

    if (curr->next != nullptr) {  // Update the next node's prev pointer
        curr->next->prev = curr->prev;
    }

    if (head == curr) {  // If the node to be deleted is the head node
        head = curr->next;
    }

    delete curr;  // Deallocate memory
    return head;
}

void printList(Node* head) {
    Node* curr = head;
    while (curr != nullptr) {
        cout << curr->data << " ";
        curr = curr->next;
    }
    cout << endl;
}

int main() {
    Node* head = new Node(1);  // Create a hardcoded doubly linked list: 1 <-> 2 <-> 3
    head->next = new Node(2);
    head->next->prev = head;
    head->next->next = new Node(3);
    head->next->next->prev = head->next;

    head = delPos(head, 2);  // Delete the node at position 2

    printList(head);  // Print the updated list

    return 0;
}

C# Implementation

using System;

class Node {
    public int Data;
    public Node Prev;
    public Node Next;

    public Node(int data) {
        Data = data;
        Prev = null;
        Next = null;
    }
}

class Program {
    static Node DelPos(Node head, int pos) {
        if (head == null) return head;  // If the list is empty

        Node curr = head;

        for (int i = 1; curr != null && i < pos; ++i) {  // Traverse to the node at the given position
            curr = curr.Next;
        }

        if (curr == null) return head;  // If the position is out of range

        if (curr.Prev != null) {  // Update the previous node's next pointer
            curr.Prev.Next = curr.Next;
        }

        if (curr.Next != null) {  // Update the next node's prev pointer
            curr.Next.Prev = curr.Prev;
        }

        if (head == curr) {  // If the node to be deleted is the head node
            head = curr.Next;
        }

        return head;  // Memory management handled by garbage collector
    }

    static void PrintList(Node head) {
        Node curr = head;
        while (curr != null) {
            Console.Write(curr.Data + " ");
            curr = curr.Next;
        }
        Console.WriteLine();
    }

    static void Main() {
        Node head = new Node(1);  // Create a hardcoded doubly linked list: 1 <-> 2 <-> 3
        head.Next = new Node(2);
        head.Next.Prev = head;
        head.Next.Next = new Node(3);
        head.Next.Next.Prev = head.Next;

        head = DelPos(head, 2);  // Delete the node at position 2

        PrintList(head);  // Print the updated list
    }
}

Java Implementation

class Node {
    int data;
    Node prev, next;

    Node(int data) {
        this.data = data;
        this.prev = null;
        this.next = null;
    }
}

public class DoublyLinkedList {

    public static Node delPos(Node head, int pos) {
        if (head == null) return head;  // If the list is empty

        Node curr = head;

        for (int i = 1; curr != null && i < pos; ++i) {  // Traverse to the node at the given position
            curr = curr.next;
        }

        if (curr == null) return head;  // If the position is out of range

        if (curr.prev != null) {  // Update the previous node's next pointer
            curr.prev.next = curr.next;
        }

        if (curr.next != null) {  // Update the next node's prev pointer
            curr.next.prev = curr.prev;
        }

        if (head == curr) {  // If the node to be deleted is the head node
            head = curr.next;
        }

        return head;
    }

    public static void printList(Node head) {
        Node curr = head;
        while (curr != null) {
            System.out.print(curr.data + " ");
            curr = curr.next;
        }
        System.out.println();
    }

    public static void main(String[] args) {
        Node head = new Node(1);  // Create a hardcoded doubly linked list: 1 <-> 2 <-> 3
        head.next = new Node(2);
        head.next.prev = head;
        head.next.next = new Node(3);
        head.next.next.prev = head.next;

        head = delPos(head, 2);  // Delete the node at position 2

        printList(head);  // Print the updated list
    }
}

JavaScript Implementation

class Node {
    constructor(data) {
        this.data = data;
        this.prev = null;
        this.next = null;
    }
}

function delPos(head, pos) {
    if (!head) return head;  // If the list is empty

    let curr = head;

    for (let i = 1; curr !== null && i < pos; i++) {  // Traverse to the node at the given position
        curr = curr.next;
    }

    if (!curr) return head;  // If the position is out of range

    if (curr.prev) {  // Update the previous node's next pointer
        curr.prev.next = curr.next;
    }

    if (curr.next) {  // Update the next node's prev pointer
        curr.next.prev = curr.prev;
    }

    if (head === curr) {  // If the node to be deleted is the head node
        head = curr.next;
    }

    return head;  // Memory management handled by JavaScript's garbage collector
}

function printList(head) {
    let curr = head;
    while (curr) {
        process.stdout.write(curr.data + " ");
        curr = curr.next;
    }
    console.log();
}

let head = new Node(1);  // Create a hardcoded doubly linked list: 1 <-> 2 <-> 3
head.next = new Node(2);
head.next.prev = head;
head.next.next = new Node(3);
head.next.next.prev = head.next;

head = delPos(head, 2);  // Delete the node at position 2

printList(head);  // Print the updated list

Python Implementation

class Node:
    def __init__(self, data):
        self.data = data
        self.prev = None
        self.next = None

def delPos(head, pos):
    if not head:  # If the list is empty
        return head

    curr = head

    for _ in range(1, pos):  # Traverse to the node at the given position
        if curr.next:
            curr = curr.next
        else:
            return head  # If the position is out of range

    if curr.prev:  # Update the previous node's next pointer
        curr.prev.next = curr.next

    if curr.next:  # Update the next node's prev pointer
        curr.next.prev = curr.prev

    if head == curr:  # If the node to be deleted is the head node
        head = curr.next

    return head  # Memory management handled by Python's garbage collector

def printList(head):
    curr = head
    while curr:
        print(curr.data, end=" ")
        curr = curr.next
    print()

# Create a hardcoded doubly linked list: 1 <-> 2 <-> 3
head = Node(1)
head.next = Node(2)
head.next.prev = head
head.next.next = Node(3)
head.next.next.prev = head.next

head = delPos(head, 2)  # Delete the node at position 2

printList(head)  # Print the updated list

Output:

1 3

Complexity Analysis

Time Complexity

  • Traversing the list to locate the target node takes O(n), where n is the number of nodes in the list.
  • Pointer updates and memory deallocation occur in constant time O(1).

Thus, the overall time complexity is O(n).

Auxiliary Space

  • The algorithm uses a fixed amount of extra memory (no recursion or data structures), so the auxiliary space is O(1).

Advantages of Deletion at a Specific Position in a Doubly Linked List

  • Bidirectional Traversal
    • One of the major advantages of a Doubly Linked List is the ability to traverse in both forward and backward directions. This feature simplifies deletion because:
      • You can reach the target node from either end of the list, making it efficient to locate nodes close to the tail.
      • Unlike a Singly Linked List, there is no need to keep track of the previous node during traversal, as the prev pointer of the current node provides direct access.
  • Simplified Pointer Adjustments
    • In a DLL, deleting a node requires adjusting both the next and prev pointers of adjacent nodes. This structured pointer system makes deletion more straightforward:
      • The next pointer of the previous node can directly bypass the target node.
      • The prev pointer of the next node can also be updated directly, without needing additional traversal. This reduces complexity, especially for nodes in the middle of the list.
  • Efficient Deletion of Head and Tail Nodes
    • Head Node: Deleting the head node in a DLL is efficient because the head pointer is simply updated to the next node, and the prev pointer of the new head is set to NULL.
    • Tail Node: Deleting the tail node requires only updating the next pointer of the second-to-last node to NULL. There is no need to traverse the list to access the previous node.
    • This contrasts with a Singly Linked List, where deleting the tail node requires traversing the entire list.
  • No Dependency on External Data Structures
    • Unlike certain operations in Singly Linked Lists that may require maintaining external variables (e.g., to track the previous node), the Doubly Linked List inherently stores references to both adjacent nodes (prev and next). This eliminates the need for additional data structures or temporary variables during deletion.
  • Flexibility in Dynamic Applications
    • The ability to delete nodes at arbitrary positions makes DLLs highly suitable for dynamic applications, such as:
      • Queue Systems: Removing elements from specific positions in real-time.
      • Playlist Management: Deleting songs from a playlist without disrupting the sequence.
      • Memory Allocation Systems: Deallocating memory blocks in dynamic memory management.
  • Supports Arbitrary Position Deletion Without Traversal from Start
    • In applications where a reference to the node is already available (e.g., using iterators in higher-level implementations), deletion can be performed directly without traversing from the start. This is particularly useful in cache systems or database indexing, where nodes can be accessed in constant time using external references.
  • Efficient Handling of Sparse Data
    • For datasets that involve frequent insertions and deletions, DLLs handle sparse data efficiently:
      • Deleting a node doesn’t require shifting the entire data structure, as in arrays.
      • Only pointers are updated, preserving memory and reducing computational overhead.
  • Memory Management
    • By freeing memory explicitly after deletion, DLLs avoid issues like memory leaks. The dynamic nature of memory allocation and deallocation ensures optimal use of available resources.
  • Reduced Risk of Broken Links
    • In a DLL, the use of both prev and next pointers ensures that:
      • Even if the next pointer of a node is incorrectly updated during deletion, the prev pointer of adjacent nodes can be used to rectify the error.
      • This redundancy adds robustness to the data structure compared to a Singly Linked List, where a single broken link can result in data loss or corruption.
  • Practical Application Scenarios
    • The advantages of position-specific deletion make DLLs the ideal choice for many real-world applications:
      • Undo/Redo Functionality: In text editors, nodes representing actions can be deleted based on user commands.
      • Browser History: Removing outdated pages from history involves deleting nodes at arbitrary positions.
      • Data Streaming: In media players, deleting frames or buffering data at specific positions is efficient with DLLs.

Key Takeaways

  • A Doubly Linked List offers enhanced functionality over a Singly Linked List at the cost of increased complexity and memory usage.
  • Proper pointer adjustments and memory management are essential for efficient and error-free node deletion.
  • Understanding node deletion in DLLs lays the foundation for mastering more advanced data structures and algorithms.

Conclusion

Understanding how to delete a node at a specific position in a doubly linked list is a vital concept in mastering dynamic data structures. By carefully managing pointers and ensuring memory is deallocated, we maintain the integrity of the list and avoid memory leaks. This approach serves as a foundation for more advanced operations and algorithms involving linked lists.

  1. Deletion in a Doubly Linked List with Implementation: A Comprehensive Guide
  2. Deletion at the Beginning in a Doubly Linked List: A Detailed Exploration
  3. Deletion after a given node in Doubly Linked List: A Comprehensive Guide
  4. Deleting a Node Before a Given Node in a Doubly Linked List: A Detailed Exploration
  5. Deletion at a Specific Position in a Doubly Linked List: A Detailed Exploration
  6. Deletion at the End in Doubly Linked List: A Comprehensive Exploration

Frequently Asked Questions (FAQs)

What is a Doubly Linked List (DLL), and how is it different from a Singly Linked List?

A Doubly Linked List (DLL) is a type of linked list where each node contains three components:

  • Data: The value or information stored in the node.
  • Pointer to the Previous Node (prev): A reference to the preceding node in the list.
  • Pointer to the Next Node (next): A reference to the succeeding node in the list.

In contrast, a Singly Linked List (SLL) contains only:

  • Data: The value stored in the node.
  • Pointer to the Next Node (next): A reference to the succeeding node.

Differences:

  • Traversal: DLLs support bidirectional traversal (both forward and backward), whereas SLLs allow only forward traversal.
  • Memory: DLLs require additional memory for the prev pointer, making them more memory-intensive than SLLs.
  • Insertion/Deletion: DLLs are more flexible for operations like insertion and deletion at arbitrary positions since they store references to both adjacent nodes.

Why is deletion in a Doubly Linked List more complex than in a Singly Linked List?

In a Doubly Linked List, each node is connected to both its previous and next nodes. This means that during deletion:

  • Both the prev and next pointers of adjacent nodes must be updated to bypass the node being deleted.
  • Special cases, such as deleting the head node or the tail node, require extra handling to ensure the list’s integrity.

In contrast, in a Singly Linked List, only the next pointer needs to be updated, simplifying the process but limiting bidirectional traversal and efficiency in some cases.

How do you delete a node at a specific position in a Doubly Linked List?

To delete a node at a specific position in a Doubly Linked List:

  • Traverse to the Target Node: Use the next pointer to navigate to the node at the desired position.
  • Validate Position: Ensure the position exists within the bounds of the list.
  • Adjust Pointers:
    • Update the prev->next pointer of the previous node to skip the current node.
    • Update the next->prev pointer of the next node to point to the previous node.
  • Handle Special Cases:
    • If the node is the head, update the head pointer to the next node.
    • If the node is the tail, no additional adjustments are needed beyond pointer updates.
  • Deallocate Memory: Free the memory occupied by the node to prevent memory leaks.

Can you explain the time complexity of deleting a node in a Doubly Linked List?

The time complexity of deleting a node in a Doubly Linked List is determined by the traversal time:

  • Traversal: Locating the node requires O(n) time, where n is the number of nodes in the list.
  • Pointer Updates and Deallocation: These operations are performed in constant time, O(1).

Hence, the overall time complexity is O(n).

What is the role of the prev and next pointers in deletion?

The prev and next pointers play a crucial role in maintaining the structure of the Doubly Linked List during deletion:

  • prev Pointer: Ensures that the previous node’s next pointer skips the deleted node and points to the node after it.
  • next Pointer: Ensures that the next node’s prev pointer skips the deleted node and points to the node before it.

By updating these pointers correctly, the deleted node is effectively removed from the sequence without disrupting the connectivity of the list.

How do you handle the deletion of the head node in a Doubly Linked List?

When deleting the head node:

  • Update the head pointer to point to the next node (head = head->next).
  • Set the prev pointer of the new head node to NULL, as it no longer has a preceding node.
  • Free the memory allocated to the original head node.

This ensures that the list remains functional, and the new head is correctly updated.

What happens if the position to be deleted is invalid?

If the specified position is invalid (e.g., greater than the number of nodes or less than 1):

  • The function typically returns without modifying the list.
  • No memory is deallocated since no node is targeted for deletion.
  • Error checking is crucial to ensure the position is within valid bounds before proceeding with deletion.

In the provided C implementation, the check if (curr == NULL) handles this scenario.

Can you explain the memory management aspect during deletion?

Memory management is critical to prevent memory leaks:

  • After updating the prev and next pointers to exclude the target node, the node’s memory is freed using the free() function in C.
  • This ensures that the memory previously allocated for the node becomes available for reuse.

Neglecting to deallocate memory can lead to inefficiencies and crashes, especially in long-running programs.

Why does deleting the tail node require less pointer adjustment?

When deleting the tail node:

  • Only the prev->next pointer of the second-to-last node needs to be set to NULL, as there is no subsequent node to update.
  • The head pointer remains unaffected unless the list has only one node.

This simplicity arises because the tail has no next pointer that needs adjustment, making it a relatively straightforward operation compared to deleting other nodes.

What are the practical applications of Doubly Linked Lists and node deletion?

Doubly Linked Lists are widely used in real-world applications due to their flexibility in bidirectional traversal and dynamic memory management. Here are a few examples where deletion plays a critical role:

  • Browser History Management: Nodes representing web pages are deleted when the history exceeds a certain limit or when the user clears it.
  • Text Editor Undo/Redo: Nodes representing actions are deleted as part of the undo/redo operations to maintain the stack structure.
  • Cache Systems: Deletion is crucial in the Least Recently Used (LRU) Cache implementations to remove the least frequently accessed data.
  • Dynamic Memory Allocation: Operating systems use linked lists to manage free and used memory blocks, where blocks are deleted or added dynamically.
Share.
Examsmeta Logo

Examsmeta is your one-stop destination for comprehensive educational resources across a wide array of disciplines. At Examsmeta, we are dedicated to providing high-quality, topic-wise notes and articles that cater to students, educators, researchers, and lifelong learners. Our mission is to make learning accessible, engaging, and effective for everyone. Our mission is to empower learners by offering detailed, accurate, and up-to-date educational content. We strive to foster a love for learning and to support the academic and professional growth of our users. Whether you're preparing for exams, conducting research, or simply expanding your knowledge, Examsmeta is here to guide you every step of the way.
