Introduction to Directed Acyclic Graph (DAG): A Comprehensive Exploration with Examples

A Directed Acyclic Graph (DAG) is a cornerstone of graph theory and a concept that finds widespread application in computer science, mathematics, and various engineering disciplines. At its core, a DAG represents a collection of objects (nodes or vertices) that are connected by directional relationships (edges) but, importantly, do not form cycles. This structure is essential for modeling many real-world processes, systems, and dependencies that must progress in one direction, without looping back.

In this in-depth article, we will explore the Directed Acyclic Graph from a conceptual, practical, and technical perspective. We’ll dive into its properties, discuss its significance in various fields, and even look at how it’s implemented in popular programming languages. Additionally, we’ll examine how DAGs are used in real-world scenarios such as task scheduling, data flow analysis, compiler design, and dependency resolution. By the end of this article, you will have a comprehensive understanding of DAGs, including detailed examples to showcase their practical usage.

What is a Directed Acyclic Graph (DAG)?

A Directed Acyclic Graph (DAG) is a directed graph that does not contain any cycles. To better understand this, we can break down the term:

Directed: In a DAG, each edge has a specific direction, pointing from one node (vertex) to another. This indicates a unidirectional relationship between the nodes.
Acyclic: The term “acyclic” means that there are no loops or cycles in the graph. In other words, there is no way to start at one node and follow a path of directed edges that returns to the original node.

Directed Cyclic Graph and Directed Acyclic Graph

Directed Acyclic Graph (DAG) — Representation of Directed Cyclic Graph and Directed Acyclic Graph

Thus, a DAG is a graph that is both directed and free of cycles, making it an ideal structure for representing systems with hierarchical or dependency-based relationships.

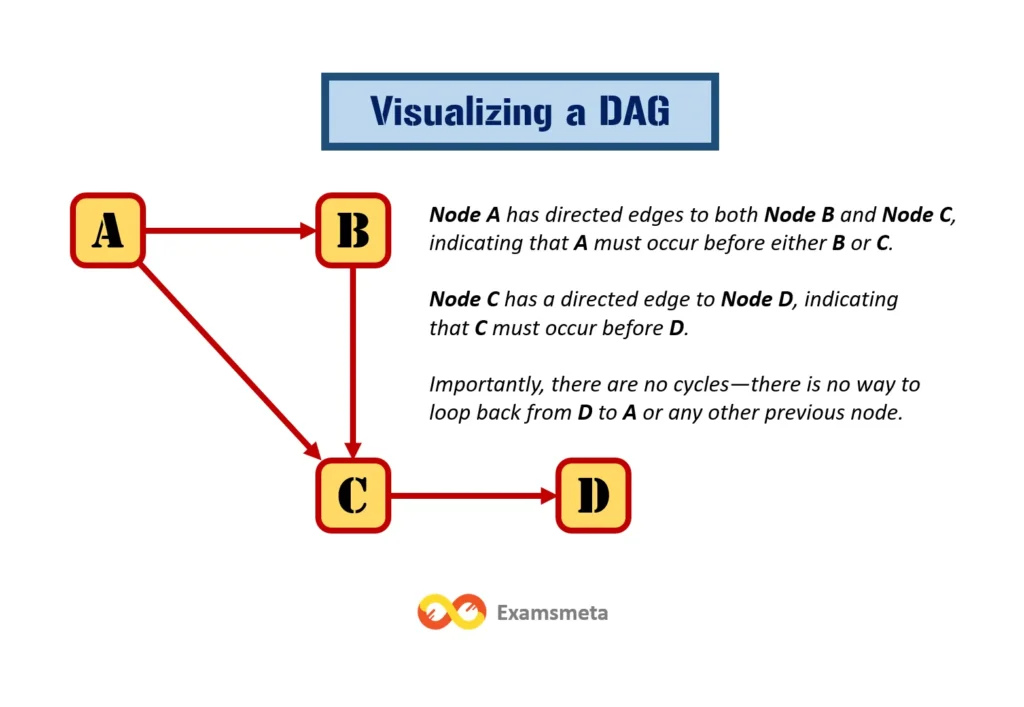

Visualizing a DAG

Imagine a graph with nodes representing tasks or events and directed edges representing dependencies between them. For example, in project management, tasks must be performed in a certain order. Some tasks may depend on the completion of others, and DAGs help model this process. Below is an abstract diagram to demonstrate a simple DAG structure:

In this example:

Node A has directed edges to both Node B and Node C, indicating that A must occur before either B or C.
Node C has a directed edge to Node D, indicating that C must occur before D.
Importantly, there are no cycles—there is no way to loop back from D to A or any other previous node.

Meaning of Directed Acyclic Graph

To fully grasp the significance of DAGs, let’s take a closer look at their key features:

Directed Edges: Each edge in a DAG has a clear direction, indicating the flow or progression from one node to another. This direction signifies a dependency, where one event or action must occur before the next.
Acyclic: The absence of cycles means that no node in the graph can be revisited once it has been left. This ensures that there is a strict hierarchy or sequence, preventing infinite loops or circular dependencies.

Properties of Directed Acyclic Graph (DAG)

The Directed Acyclic Graph has several important properties that make it a valuable structure in solving many types of graph-related problems. Let’s break down these properties:

1. Reachability Relation

In a DAG, we can determine if there is a reachability relation between two nodes. Node A is said to be reachable from node B if there exists a directed path that starts at B and ends at A. This reachability property allows us to determine whether we can move from one node to another by following the directed edges.

For instance, in task scheduling, reachability helps determine whether one task depends on another, ensuring tasks are performed in the correct order.

2. Transitive Closure

The transitive closure of a DAG is a new graph that represents all direct and indirect connections between nodes. It indicates whether one node can be reached from another, either through a single edge or a series of edges. In essence, it captures the entire reachability relationship of the original graph.

Transitive Closure of Directed Acyclic Graph (DAG)

For example, if A → B → C exists in the original DAG, the transitive closure will have a direct edge A → C to indicate that C is reachable from A through an intermediate node B.

3. Transitive Reduction

In contrast, the transitive reduction of a DAG is a simplified version that retains only the essential edges, while removing redundant edges. It preserves the overall reachability relationship but eliminates any unnecessary connections.

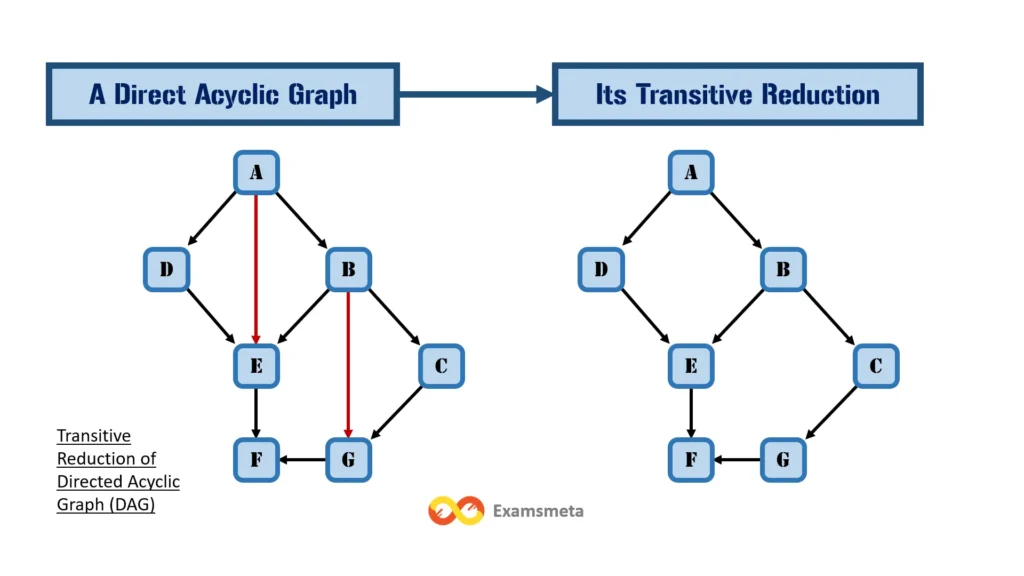

Transitive Reduction of Directed Acyclic Graph (DAG)

For instance, if the transitive closure has an edge A → C (derived from A → B → C), the transitive reduction will keep A → B and B → C, but remove A → C, as it can be inferred from the other edges.

4. Topological Ordering

One of the most important properties of a DAG is that it can be topologically sorted. This means that we can order the nodes in such a way that for every directed edge U → V, U appears before V in the sequence. This property is particularly useful for task scheduling and dependency resolution.

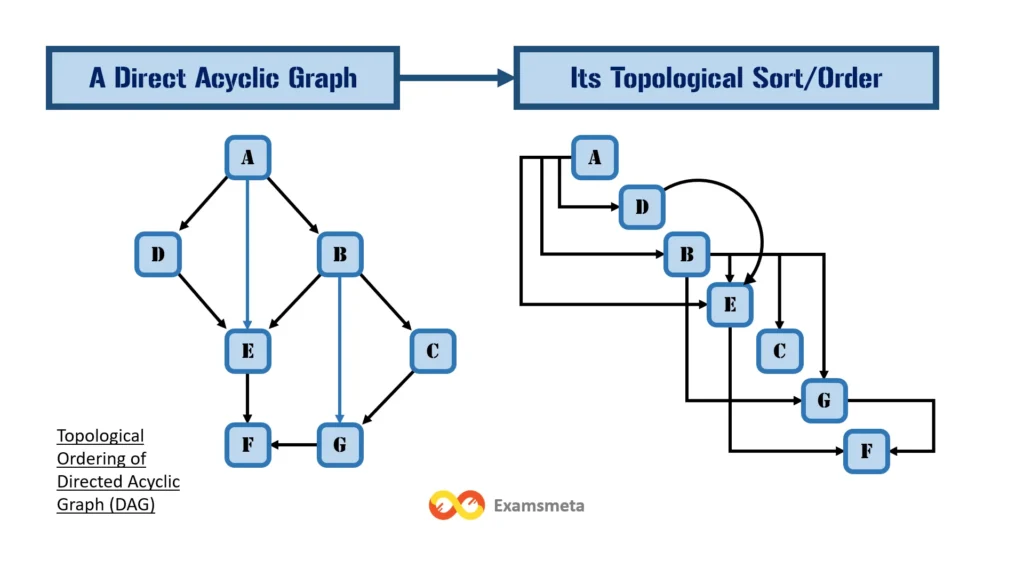

Topological Ordering of Directed Acyclic Graph (DAG)

Practical Applications of DAGs

Directed Acyclic Graphs are used in a wide range of fields and applications, thanks to their ability to model dependencies and processes that flow in one direction. Let’s explore some practical applications in greater detail:

1. Data Flow Analysis in Compiler Design

In compiler design and optimization, DAGs are used to represent data flow within a program. Specifically, they help to model the flow of data between different operations or instructions in a way that highlights dependencies. By representing code as a DAG, compilers can optimize the code by eliminating redundant calculations or dead code—code that is not used in the final output.

A typical example of this usage is in basic block representation. A basic block is a sequence of instructions without branches, and it can be modeled as a DAG where nodes represent operations and edges represent dependencies. The acyclic property ensures that there are no cycles, preventing infinite loops in the basic block structure.

2. Task Scheduling

DAGs are also used extensively in task scheduling. Here, tasks are represented as nodes, and directed edges represent dependencies between tasks. The acyclic nature of the DAG ensures that tasks are scheduled in a logical order without any circular dependencies.

For example, if you are managing a project where Task B depends on Task A, the DAG ensures that Task A is completed before Task B can begin. This property is crucial in real-world scheduling applications such as project management, job scheduling, and task prioritization.

In more complex scenarios, we can represent a scheduling problem as a weighted directed acyclic graph, where the weight of a vertex represents the size or complexity of a task, and the weight of an edge represents the communication cost between two tasks. This approach is used in high-performance computing environments where tasks must be scheduled efficiently to minimize overall execution time.

3. Blockchain and Cryptography

DAGs are increasingly being used in blockchain technology and cryptographic systems. Unlike traditional blockchain structures that form a linear chain of blocks, some newer systems, such as IOTA, use DAGs to represent transaction relationships. This structure improves scalability by allowing multiple transactions to be confirmed in parallel, rather than sequentially.

In this context, each transaction is a node in the DAG, and the edges represent dependencies between transactions. The acyclic property ensures that there are no loops, preventing any form of double-spending or circular dependencies.

4. Version Control Systems

In version control systems such as Git, DAGs are used to represent the history of commits. Each commit is a node in the DAG, and the edges represent the parent-child relationships between commits. This allows for branching and merging, with the acyclic property ensuring that no circular dependencies exist between different versions of the codebase.

When you create a branch in Git, it forms a new path in the DAG, and when you merge branches, the DAG represents the convergence of the paths, all while maintaining the acyclic structure.

Directed Acyclic Graphs in Programming

Now that we’ve covered the conceptual foundation of DAGs, let’s take a look at how we can implement and work with DAGs in various programming languages. Below, we provide examples in Python, C, C++, C#, Java, PHP, and JavaScript.

1. Python Example

from collections import defaultdict

class DAG:
    def __init__(self):
        self.graph = defaultdict(list)

    def add_edge(self, u, v):
        self.graph[u].append(v)

    def topological_sort_util(self, v, visited, stack):
        visited[v] = True
        for i in self.graph[v]:
            if not visited[i]:
                self.topological_sort_util(i, visited, stack)
        stack.insert(0, v)

    def topological_sort(self):
        visited = {i: False for i in self.graph}
        stack = []
        for node in self.graph:
            if

 not visited[node]:
                self.topological_sort_util(node, visited, stack)
        print(stack)

dag = DAG()
dag.add_edge(5, 2)
dag.add_edge(5, 0)
dag.add_edge(4, 0)
dag.add_edge(4, 1)
dag.add_edge(2, 3)
dag.add_edge(3, 1)

print("Topological Sorting of the graph:")
dag.topological_sort()

Output:

Topological Sorting of the graph:
[5, 4, 2, 3, 1, 0]

2. C Example

#include <stdio.h>
#include <stdlib.h>

#define MAX 100

int adj[MAX][MAX];
int visited[MAX];
int stack[MAX];
int top = -1;

void addEdge(int u, int v) {
    adj[u][v] = 1;
}

void topologicalSortUtil(int v, int numVertices) {
    visited[v] = 1;
    for (int i = 0; i < numVertices; i++) {
        if (adj[v][i] == 1 && !visited[i]) {
            topologicalSortUtil(i, numVertices);
        }
    }
    stack[++top] = v;
}

void topologicalSort(int numVertices) {
    for (int i = 0; i < numVertices; i++) {
        visited[i] = 0;
    }
    for (int i = 0; i < numVertices; i++) {
        if (!visited[i]) {
            topologicalSortUtil(i, numVertices);
        }
    }
    while (top >= 0) {
        printf("%d ", stack[top--]);
    }
}

int main() {
    int numVertices = 6;

    addEdge(5, 2);
    addEdge(5, 0);
    addEdge(4, 0);
    addEdge(4, 1);
    addEdge(2, 3);
    addEdge(3, 1);

    printf("Topological Sort:\n");
    topologicalSort(numVertices);

    return 0;
}

Output:

Topological Sort:
5 4 2 3 1 0

3. C++ Example

#include <iostream>
#include <list>
#include <stack>
using namespace std;

class DAG {
    int V;
    list<int>* adj;

    void topologicalSortUtil(int v, bool visited[], stack<int>& Stack);

public:
    DAG(int V);
    void addEdge(int v, int w);
    void topologicalSort();
};

DAG::DAG(int V) {
    this->V = V;
    adj = new list<int>[V];
}

void DAG::addEdge(int v, int w) {
    adj[v].push_back(w);
}

void DAG::topologicalSortUtil(int v, bool visited[], stack<int>& Stack) {
    visited[v] = true;
    for (auto i = adj[v].begin(); i != adj[v].end(); ++i) {
        if (!visited[*i]) {
            topologicalSortUtil(*i, visited, Stack);
        }
    }
    Stack.push(v);
}

void DAG::topologicalSort() {
    stack<int> Stack;
    bool* visited = new bool[V];
    for (int i = 0; i < V; i++) {
        visited[i] = false;
    }
    for (int i = 0; i < V; i++) {
        if (!visited[i]) {
            topologicalSortUtil(i, visited, Stack);
        }
    }
    while (!Stack.empty()) {
        cout << Stack.top() << " ";
        Stack.pop();
    }
}

int main() {
    DAG dag(6);
    dag.addEdge(5, 2);
    dag.addEdge(5, 0);
    dag.addEdge(4, 0);
    dag.addEdge(4, 1);
    dag.addEdge(2, 3);
    dag.addEdge(3, 1);

    cout << "Topological Sorting of the graph:\n";
    dag.topologicalSort();
    return 0;
}

Output:

Topological Sorting of the graph:
5 4 2 3 1 0

4. C# Example

using System;
using System.Collections.Generic;

class DAG {
    private readonly int V;
    private readonly List<int>[] adj;

    public DAG(int V) {
        this.V = V;
        adj = new List<int>[V];
        for (int i = 0; i < V; i++) {
            adj[i] = new List<int>();
        }
    }

    public void AddEdge(int v, int w) {
        adj[v].Add(w);
    }

    private void TopologicalSortUtil(int v, bool[] visited, Stack<int> stack) {
        visited[v] = true;
        foreach (int i in adj[v]) {
            if (!visited[i]) {
                TopologicalSortUtil(i, visited, stack);
            }
        }
        stack.Push(v);
    }

    public void TopologicalSort() {
        Stack<int> stack = new Stack<int>();
        bool[] visited = new bool[V];
        for (int i = 0; i < V; i++) {
            if (!visited[i]) {
                TopologicalSortUtil(i, visited, stack);
            }
        }
        while (stack.Count != 0) {
            Console.Write(stack.Pop() + " ");
        }
    }
}

class Program {
    static void Main() {
        DAG dag = new DAG(6);
        dag.AddEdge(5, 2);
        dag.AddEdge(5, 0);
        dag.AddEdge(4, 0);
        dag.AddEdge(4, 1);
        dag.AddEdge(2, 3);
        dag.AddEdge(3, 1);

        Console.WriteLine("Topological Sorting of the graph:");
        dag.TopologicalSort();
    }
}

Output:

Topological Sorting of the graph:
5 4 2 3 1 0

5. Java Example

import java.util.*;

class DAG {
    private final int V;
    private final LinkedList<Integer>[] adj;

    DAG(int v) {
        V = v;
        adj = new LinkedList[v];
        for (int i = 0; i < v; ++i) {
            adj[i] = new LinkedList<>();
        }
    }

    void addEdge(int v, int w) {
        adj[v].add(w);
    }

    void topologicalSortUtil(int v, boolean[] visited, Stack<Integer> stack) {
        visited[v] = true;
        for (Integer i : adj[v]) {
            if (!visited[i]) {
                topologicalSortUtil(i, visited, stack);
            }
        }
        stack.push(v);
    }

    void topologicalSort() {
        Stack<Integer> stack = new Stack<>();
        boolean[] visited = new boolean[V];
        for (int i = 0; i < V; i++) {
            if (!visited[i]) {
                topologicalSortUtil(i, visited, stack);
            }
        }
        while (!stack.isEmpty()) {
            System.out.print(stack.pop() + " ");
        }
    }

    public static void main(String[] args) {
        DAG dag = new DAG(6);
        dag.addEdge(5, 2);
        dag.addEdge(5, 0);
        dag.addEdge(4, 0);
        dag.addEdge(4, 1);
        dag.addEdge(2, 3);
        dag.addEdge(3, 1);

        System.out.println("Topological Sorting of the graph:");
        dag.topologicalSort();
    }
}

Output:

Topological Sorting of the graph:
5 4 2 3 1 0

6. PHP Example

<?php
class DAG {
    private $adj;

    public function __construct($v) {
        $this->V = $v;
        $this->adj = array();
        for ($i = 0; $i < $v; $i++) {
            $this->adj[$i] = array();
        }
    }

    public function addEdge($v, $w) {
        array_push($this->adj[$v], $w);
    }

    private function topologicalSortUtil($v, &$visited, &$stack) {
        $visited[$v] = true;
        foreach ($this->adj[$v] as $i) {
            if (!$visited[$i]) {
                $this->topologicalSortUtil($i, $visited, $stack);
            }
        }
        array_push($stack, $v);
    }

    public function topologicalSort() {
        $stack = array();
        $visited = array_fill(0, $this->V, false);
        for ($i = 0; $i < $this->V; $i++) {
            if (!$visited[$i]) {
                $this->topologicalSortUtil($i, $visited, $stack);
            }
        }
        while (!empty($stack)) {
            echo array_pop($stack) . " ";
        }
    }
}

$dag = new DAG(6);
$dag->addEdge(5, 2);
$dag->addEdge(5, 0);
$dag->addEdge(4, 0);
$dag->addEdge(4, 1);
$dag->addEdge(2, 3);
$dag->addEdge(3, 1);

echo "Topological Sorting of the graph:\n";
$dag->topologicalSort();
?>

Output:

Topological Sorting of the graph:
5 4 2 3 1 0

7. JavaScript Example

class DAG {
    constructor(V) {
        this.V = V;
        this.adj = new Map();
        for (let i = 0; i < V; i++) {
            this.adj.set(i, []);
        }
    }

    addEdge(v, w) {
        this.adj.get(v).push(w);
    }

    topologicalSortUtil(v, visited, stack) {
        visited[v] = true;
        for (let i of this.adj.get(v)) {
            if (!visited[i]) {
                this.topologicalSortUtil(i, visited, stack);
            }
        }
        stack.push(v);
    }

    topologicalSort() {
        let stack = [];
        let visited = new Array(this.V).fill(false);
        for (let i = 0; i < this.V; i++) {
            if (!visited[i]) {
                this.topologicalSortUtil(i, visited, stack);
            }
        }
        while (stack.length) {
            console.log(stack.pop() + " ");
        }
    }
}

let dag = new DAG(6);
dag.addEdge(5, 2);
dag.addEdge(5, 0);
dag.addEdge(4, 0);
dag.addEdge(4, 1);
dag.addEdge(2, 3);
dag.addEdge(3, 1);

console.log("Topological Sorting of the graph:");
dag.topologicalSort();

Output:

Topological Sorting of the graph:
5 4 2 3 1 0

These examples highlight how DAGs can be implemented across various programming languages. Although the syntax may differ, the fundamental logic of topological sorting remains consistent, showcasing the universal nature of graph algorithms in computer science.

Conclusion

In summary, Directed Acyclic Graphs (DAGs) play a pivotal role in numerous computer science applications, especially in scenarios requiring the organization of tasks with dependencies. Their properties—like reachability, transitive closure, and topological ordering—make them indispensable in areas such as task scheduling, data flow analysis, and compiler optimization. The absence of cycles in DAGs ensures an efficient and unambiguous execution order of tasks, making them highly reliable in solving complex dependency problems.

By understanding DAGs and their operations across different languages, developers and engineers can better tackle a wide range of problems in software development, project management, and algorithm design.

Frequently Asked Questions (FAQs) on Directed Acyclic Graphs (DAG)

What is a Directed Acyclic Graph (DAG)?

A Directed Acyclic Graph (DAG) is a type of graph in graph theory that consists of vertices (or nodes) and edges (directed arrows between the nodes) with two fundamental properties:

Directed: Each edge has a specific direction, indicating a relationship that flows from one node to another in a one-way manner.
Acyclic: The graph has no cycles, meaning that it is impossible to start at any node and traverse along the directed edges to return to the same node. There are no closed loops.

In a DAG, the absence of cycles ensures that the relationships or dependencies between elements flow in one direction, which is why DAGs are commonly used to model processes like task scheduling, where tasks depend on others and should be performed in a certain order.

Why is acyclicity important in DAGs?

The term “acyclic” in Directed Acyclic Graph (DAG) signifies the absence of cycles. This is crucial because cycles imply circular dependencies, which can lead to logical contradictions or infinite loops in certain computational processes. For instance, if you’re trying to schedule tasks and a cycle exists, this would mean a task depends on itself indirectly, making it impossible to determine a clear starting point. Acyclicity guarantees that a DAG can be topologically sorted, providing a clear, unambiguous order in which tasks or events can proceed without any deadlock.

How is a DAG different from other types of graphs?

A DAG differs from other types of graphs primarily because it is both directed and acyclic. Here’s how it contrasts with some common graph types:

Undirected Graphs: In these graphs, edges have no direction, meaning relationships between nodes are bidirectional. In contrast, DAGs have directed edges that establish one-way dependencies.
Cyclic Graphs: These graphs can contain cycles or closed loops, whereas DAGs explicitly disallow any form of cyclicity.
Tree Structures: A tree is a specific type of DAG where there is a single root node, and all other nodes have exactly one parent. In general DAGs, nodes can have multiple parents, allowing more complex relationships.

What are some real-world applications of Directed Acyclic Graphs?

DAGs are widely applicable in various fields due to their ability to represent dependencies in a clear, hierarchical manner. Some real-world applications include:

Task Scheduling: DAGs are used to model tasks that must be performed in a specific order, such as in project management tools like Gantt charts or software build systems like Makefiles.
Version Control Systems: Systems like Git use DAGs to represent the history of commits. Each commit points to one or more parent commits, and there are no cycles in the graph of commits.
Compiler Design: DAGs are used to represent data flow in programs during code optimization, helping eliminate redundant calculations or dead code.
Blockchain Technology: Some cryptocurrencies, such as IOTA, use DAGs (referred to as Tangle) instead of the traditional blockchain structure to model transactions, allowing for greater scalability.

What is topological sorting in the context of a DAG?

Topological sorting is a key operation performed on DAGs. It involves arranging the nodes of the graph in a linear order such that for every directed edge ( u → v ), node ( u ) appears before node ( v ) in the ordering. This is possible only in a DAG because its acyclic nature ensures there are no circular dependencies.

Topological sorting is critical in scheduling tasks where certain tasks depend on the completion of others. For example, in course prerequisite graphs, a DAG can represent courses and their prerequisite relationships, and topological sorting can provide a valid order for taking the courses.

How can a DAG be used in data flow analysis?

In compiler design, DAGs are commonly used for data flow analysis, where each node represents an operation and each directed edge signifies the flow of data between operations. For instance:

Intermediate Code Generation: During compilation, the program is translated into an intermediate representation, often modeled as a DAG to capture the flow of variables and expressions.
Optimization: DAGs are used to identify common subexpressions or eliminate redundant calculations, improving the efficiency of the generated machine code.

This use of DAGs helps optimize program execution by minimizing unnecessary calculations and reducing computation costs.

What are reachability and transitive closure in a DAG?

In a DAG, reachability refers to whether there exists a directed path from one node to another. For example, if there is a path from node A to node B, we say that A is reachable from B.

Transitive closure extends the idea of reachability by constructing a new graph that contains edges representing both direct and indirect relationships. If node A is connected to node B directly and node B to node C, then A is considered to be transitively connected to C. The transitive closure of a DAG captures all such indirect relationships.

How does a DAG enable efficient task scheduling?

A DAG represents tasks as nodes and dependencies between tasks as directed edges. The absence of cycles guarantees that there are no circular dependencies, which is critical for task scheduling.

The topological sorting of the DAG provides a valid order in which tasks can be performed, ensuring that all dependencies are respected. For instance, in project management, tasks with dependencies (such as requiring materials or approvals) must be executed in a specific sequence, and the DAG can represent and organize these dependencies.

Can cycles form in a DAG?

By definition, a DAG cannot contain cycles. If a directed graph contains a cycle, it no longer qualifies as a DAG. This absence of cycles is crucial because cycles in a graph would indicate circular dependencies or infinite loops, which are undesirable in many applications like task scheduling or compiler optimization.

However, detecting cycles is an important operation. Algorithms like depth-first search (DFS) can be used to detect whether a cycle exists in a graph. If a cycle is detected in what is supposed to be a DAG, then the structure or input must be adjusted.

How is transitive reduction related to DAGs?

The Transitive Reduction of a DAG is the smallest graph that has the same reachability relations as the original DAG. It removes any redundant edges that can be inferred by transitivity. For example, if there are direct paths from A to B and from B to C, and an edge from A to C, the edge from A to C is redundant because we can infer that C is reachable from A via B.

The transitive reduction simplifies the DAG while preserving all reachability relationships, which is useful for optimizing the representation of dependencies.

What are some common algorithms used to work with DAGs?

Several important algorithms operate on DAGs:

Topological Sorting: Orders the nodes in a way that respects the direction of the edges.
Depth-First Search (DFS): Explores all nodes and edges of a graph and is commonly used to detect cycles or perform topological sorting.
Shortest Path in DAG: Unlike general graphs where we use algorithms like Dijkstra’s or Bellman-Ford, a DAG allows for more efficient algorithms to find the shortest path, given its acyclic nature.
Dynamic Programming on DAGs: Many optimization problems, such as finding the longest path, can be solved using dynamic programming techniques on DAGs.

How is a DAG different from a tree?

While both DAGs and trees are acyclic, they differ in several key ways:

Trees have a hierarchical structure with a single root and unique paths between any pair of nodes, while DAGs can have multiple parent nodes for a given child node.
In a tree, every node (except the root) has exactly one parent, but in a DAG, nodes can have multiple incoming edges (indicating dependencies on multiple other nodes).
All trees are DAGs, but not all DAGs are trees. Trees are a specific type of DAG with a strict structure.

What is the significance of DAGs in blockchain technology?

Some blockchain systems, such as IOTA, use DAGs instead of the traditional blockchain. In this case, the DAG structure is known as the Tangle, where each transaction is a vertex, and edges represent validations of previous transactions. Unlike traditional blockchains, where transactions are grouped into blocks and appended sequentially, DAGs allow for multiple transactions to be processed simultaneously, providing better scalability and faster transaction speeds.

The use of a DAG eliminates the need for miners and allows for a more decentralized, scalable approach to handling transactions.

How do you represent a DAG programmatically in various programming languages?

A DAG can be represented in code using an adjacency list or adjacency matrix, where nodes are stored along with their directed edges. Here are a few examples:

In Python:

from collections import defaultdict

class DAG:
    def __init__(self):
        self.graph = defaultdict(list)

    def add_edge(self, u, v):
        self.graph[u].append(v)

In C++:

class DAG {
    map<int, vector<int>> graph;

    void addEdge(int u, int v) {
        graph[u].push_back(v);
    }
};

In Java:

class DAG {
    Map<Integer, List<Integer>> graph = new HashMap<>();

    void addEdge(int u, int v) {
        graph.computeIfAbsent(u, k -> new ArrayList<>()).add(v);
    }
}

These examples create a DAG structure using adjacency lists where each node points to its dependencies, demonstrating how DAGs can be represented and manipulated in different programming languages.

What are the limitations of DAGs?

Despite their many advantages, DAGs also have some limitations:

No Cycles: While this is typically an advantage, in certain applications (like graph traversal algorithms), cycles may be necessary to represent repeating processes or relationships.
Difficult to Update: In dynamic systems, adding a new node or edge might create a cycle, violating the acyclicity property and requiring additional checks.
Not Suitable for All Applications: In scenarios where circular dependencies are meaningful (e.g., in certain economic models or simulations), DAGs are not suitable.

Nevertheless, DAGs remain one of the most powerful tools in computer science for organizing data and managing dependencies in a variety of applications.

Introduction to Directed Acyclic Graph (DAG): A Comprehensive Exploration with Examples

Table of Contents

What is a Directed Acyclic Graph (DAG)?

Visualizing a DAG

Meaning of Directed Acyclic Graph

Properties of Directed Acyclic Graph (DAG)

1. Reachability Relation

2. Transitive Closure

3. Transitive Reduction

4. Topological Ordering

Practical Applications of DAGs

1. Data Flow Analysis in Compiler Design

2. Task Scheduling

3. Blockchain and Cryptography

4. Version Control Systems

Directed Acyclic Graphs in Programming

1. Python Example

2. C Example

3. C++ Example

4. C# Example

5. Java Example

6. PHP Example

7. JavaScript Example

Conclusion

Related Articles

Read More Articles

Frequently Asked Questions (FAQs) on Directed Acyclic Graphs (DAG)

What is a Directed Acyclic Graph (DAG)?

Why is acyclicity important in DAGs?

How is a DAG different from other types of graphs?

What are some real-world applications of Directed Acyclic Graphs?

What is topological sorting in the context of a DAG?

How can a DAG be used in data flow analysis?

What are reachability and transitive closure in a DAG?

How does a DAG enable efficient task scheduling?

Can cycles form in a DAG?

How is transitive reduction related to DAGs?

What are some common algorithms used to work with DAGs?

How is a DAG different from a tree?

What is the significance of DAGs in blockchain technology?

How do you represent a DAG programmatically in various programming languages?

What are the limitations of DAGs?
